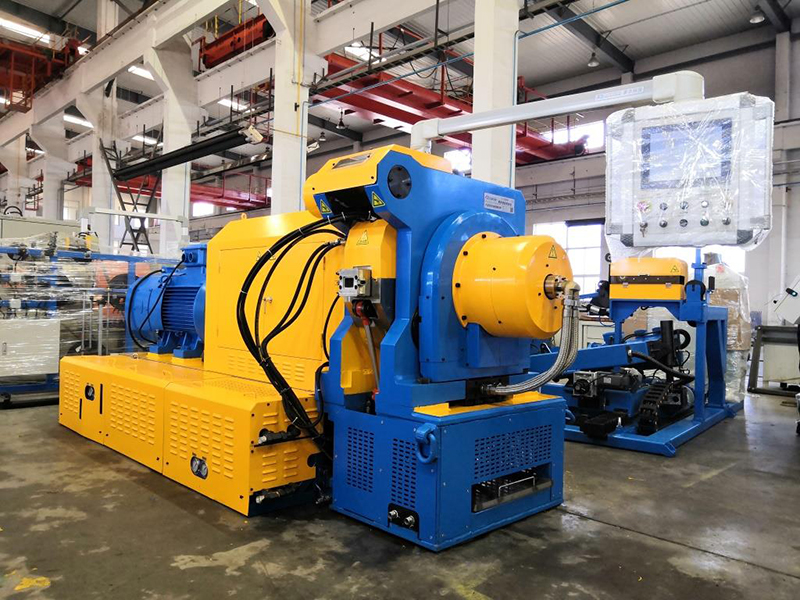

Conform Machine for Copper Round Wire

  • Konform
  • Dalian, Liaoning Province, China
  • 90 days
  • Annual output of 120 sets
1. Copper Extrusion Process has high production efficiency and low energy consumption 2. Conform Machine for Copper Round Wire has a high degree of automation and good stability and reliability 3. Conform Machine for Copper Round Wire no heating and pickling, no pollutant discharge, green and environmental protection

Product introduction of Conform Machine for Copper Wire:

Conform Machine for Copper Wire is a device that processes copper rods directly into round copper wires. It does not require heating and melting, and is energy-saving and efficient. During the operation of Copper Extrusion Process, the copper rods are "pressed" into the desired wire shape through rollers and molds, and the copper wires produced have a smooth surface and uniform thickness. This Copper Extrusion Process is suitable for the production of wires, cables and various conductors. It is easy to operate and has stable output. It is a practical equipment commonly used in many copper wire factories.


Main uses of Metal Wire Conform Machine:

Metal Wire Conform Machine is mainly used to process various types of copper conductor products. In addition to producing common copper round wires, Conform Machine for Copper Wire can also be used to manufacture copper flat wires, small copper busbars, motor commutator trapezoidal conductors and other copper products. Metal Wire Conform Machine Copper Extrusion Process is suitable for wires and cables, electronic appliances, power equipment and other industries, and can meet customers' processing needs for copper conductors of different specifications and cross-sections. Conform Machine for Copper Wire uses a continuous extrusion process to not only improve production efficiency, but also ensure the dimensional consistency and surface quality of the products.


Copper Extrusion Process


Specifications of Conform Machine for Copper Round Wire

ModelTLJ300TLJ300H
Nominal diameter of extrusion wheel(mm)300300
Main motor power(kw)90110
Copper rod diameter(mm)12.512.5
Maximum width of flat wire products(mm)4030
Minimum diameter of round product(mm)2.62.6
Cross-sectional area of flat wire products(mm2)5~2005~150
Efficiency(kg/h)480900


Conform Machine for Copper Wire


Metal Wire Conform Machine usage process:

  • Prepare copper rod: Select copper rods of appropriate specifications as raw materials, usually 8mm or above.

  • Install copper rod: Feed the copper rod into the feed port of Copper Extrusion Process and prepare to start processing.

  • Start equipment: Start the extrusion wheel system, and the copper rod is pushed forward under the action of friction.

  • Forming through mold: The copper rod passes through the mold under the action of extrusion force and is deformed into a round wire.

  • Cooling treatment: The formed copper wire is cooled by a water cooling or air cooling system.

  • Traction and wire collection: The copper wire is pulled out by the traction device and rolled or cut into sections.

  • Inspect the finished product: Check the size, appearance and quality of the copper wire, and pack it for shipment after confirming that it meets the standards.


Metal Wire Conform Machine
