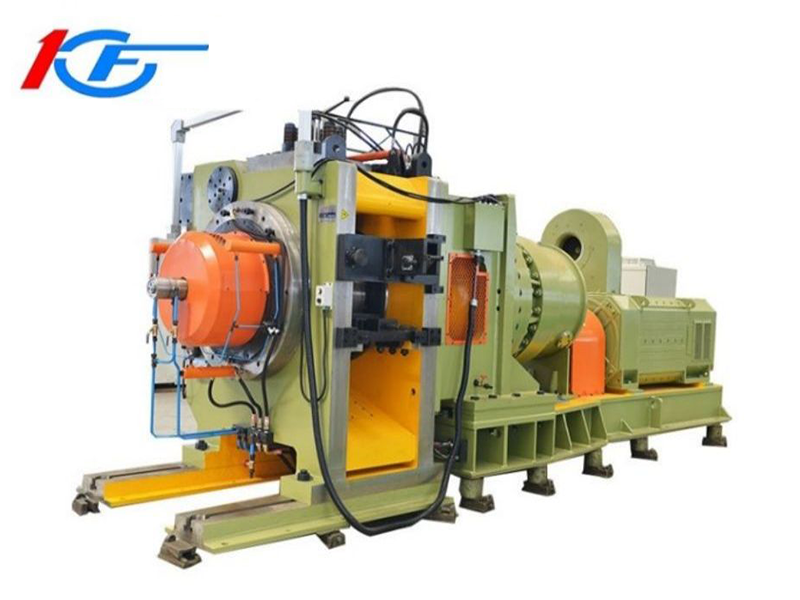

Product introduction of Railway Contact Wire Machine Supplier:
The Railway Contact Wire Machine Supplier produced by konform is a kind of equipment specially used to process copper alloy materials into various wires, flat materials or profiles. Railway Contact Wire Machine Supplier can work continuously, does not need to be heated and melted, saves energy and is very efficient. It is simple to operate and stable in operation, suitable for use in wire and cable, electronic accessories, hardware and other industries. We have also combined a number of independent patented technologies to make Railway Contact Wire Machine Supplier more energy-saving and more durable, which is a good choice for many factories to increase production capacity.
How can Copper Alloy Forming Machine be used?
Copper Alloy Forming Machine is mainly used to produce wires, flat bars and special-shaped profiles of various copper alloy materials, and is widely used in power equipment, electronic components, hardware manufacturing, new energy and other fields. Copper Alloy Forming Machine not only improves production efficiency through continuous extrusion, but also ensures the dimensional consistency and surface quality of the products. Copper Alloy Forming Machine is particularly suitable for enterprises that need large quantities of high-quality copper alloy products.
Schematic diagram of continuous extrusion principle:
Specifications of Continuous Copper Alloy Forming Machine：
| Model | TLJ400 | TLJ500 |
| Nominal diameter of extrusion wheel (mm) | 400 | 500 |
| Main motor power (kW) | 250 | 355 |
| Diameter of copper rod (mm) | 20 | 25 |
| Maximum width of product (mm) | 170 | 260 |
| Diameter of round rod product (mm) | 8～90 | 12～100 |
| Product cross-sectional area (mm2) | 75～2000 | 300～3200 |
| Productivity (kg/h) | 1200 | 1800 |
How to maintain and maintain Continuous Copper Alloy Forming Machine?
Clean the equipment regularly: Keeping the inside and outside of the machine clean is the basic work of daily maintenance. Copper chips, oil stains and dust should be cleaned in time after each use to prevent debris accumulation from affecting the operation of the equipment. Special attention should be paid to key areas such as the mold area and near the extrusion wheel to avoid blockage and increased wear.
Check the lubrication system: Lubrication is crucial to the operation of Continuous Copper Alloy Forming Machine. Regularly check whether the lubricating oil is sufficient and whether the pipeline is unobstructed. According to the frequency of use, regularly replace the lubricating oil to ensure that all moving parts of the equipment run smoothly and extend the life of the machine.
Check the wearing parts regularly: Extrusion wheels, molds, bearings, etc. are wearing parts, and their wear should be checked regularly. Once abnormal wear or cracks are found, they should be replaced in time to avoid machine failure or shutdown due to minor problems.
Calibration and tightening check: Calibrate Continuous Copper Alloy Forming Machine regularly to ensure that each component is accurately aligned to avoid production errors due to looseness. At the same time, check whether each bolt and joint is firm to prevent vibration or falling off during operation.
Production line layout of Continuous Conform Machine for Copper Alloy
Our technical support：
We offer not only equipment but complete production solutions. From technical consultation to on-site commissioning, we work closely with clients to ensure successful implementation and performance. To support innovation, the Konform R&D Center is equipped with testing systems ranging from 250 to 630 models, enabling customers to run process trials in advance and reduce the risk of new product development.
