Product introduction of Metal Extrusion Equipment:

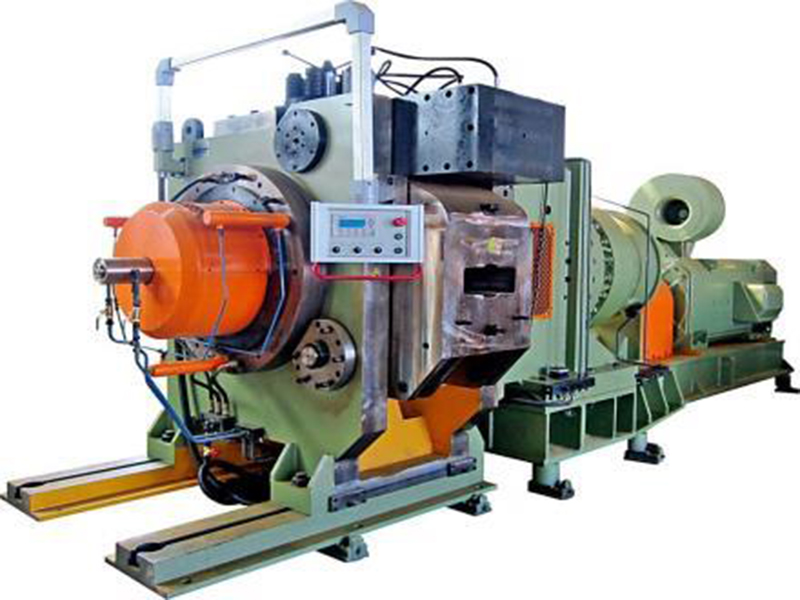

Metal Extrusion Equipment Copper Conform Machine is a highly efficient equipment specially used for processing copper materials. It can continuously process copper rods into copper products of various cross-sections, such as copper flat wires, copper bars, copper strips and special-shaped conductors, etc. through a friction-driven rotary extrusion process. Metal Extrusion Equipment Copper Conform Machine does not require melting copper materials, is energy-saving and environmentally friendly, has a high material utilization rate, and has stable finished product dimensions. It is widely used in electrical manufacturing, power systems, cable production and other fields. Metal Extrusion Equipment Copper Conform Machine has a compact structure and stable operation and can be customized according to customer needs.
Conform Machine for Metal Wire can be used to produce:
Copper Flat Wire: used in transformers, motors, charging piles and other fields.
Copper Bus Bar: used in distribution cabinets and power equipment.
Copper Strip: used in electronic components, cable sheathing materials, etc.
Shaped Copper Wire: special purpose wires, such as new energy vehicle cables, precision connectors, etc.
Specifications of Conform Machine for Copper:
Model | TLJ350 | TLJ400 |
Nominal diameter of extrusion wheel (mm) | 350 | 400 |
Main motor power (kW) | 160 | 250 |
Copper rod diameter (mm) | 16 | 20 |
Product maximum width (mm) | 100 | 170 |
Round bar product diameter (mm) | 4.5~50 | 8~90 |
Product cross-sectional area (mm2) | 15~1000 | 75~2000 |
Productivity (kg/h) | 780 | 1200 |
Working principle of Copper Conform Machine:
Raw material feeding: metal rods or wires (such as copper, aluminum, etc.) are fed into the Conform Machine for Metal Wire feed port.
Friction drive: the friction of the rotating extrusion wheel is used to push the metal material forward to Conform Machine for Metal Wire.
Through the forming die: the metal is forced through the die under high pressure, resulting in plastic deformation and forming the required wire cross-sectional shape (such as round, flat, special-shaped, etc.).
Continuous extrusion molding: the whole process is carried out continuously, uninterrupted production, and improved efficiency.
Cooling and pulling out: the formed metal wire is cooled by the cooling system, and then the finished product is pulled out by the traction device.
Reeling or cutting: the metal wire is reeled, cut or further processed according to demand.
Production line layout:
About us:
Dalian Konform Technical Company, Ltd. was officially established in 1993, but our roots in continuous extrusion technology trace back to 1984, marking over three decades of specialized research and innovation. The main products are: Conform Machine for Metal Wire, Copper Conform Machine, etc. Welcome to leave a message for consultation
